Davit Cranes

Vector Lifting offer both custom manufactured Davit Cranes and Reid Aluminium Davit Cranes, covering all requirements for lifting and personnel recovery.

Vector Lifting Davit Cranes are designed for simple and miniatous free operation, whilst offering a robust, weather resistant construction suitable for heavy-duty applications. These davit cranes are used extensively in the wastewater industry, on dam walls and in areas where floor space and access are limited.

Vector Lifting also stocks the complete range of Reid Lifting Aluminium Davit Cranes, offering light weight, portable davit crane solutions.

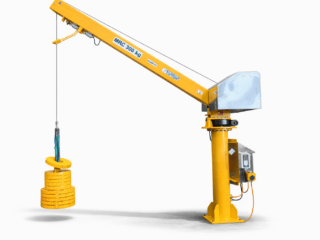

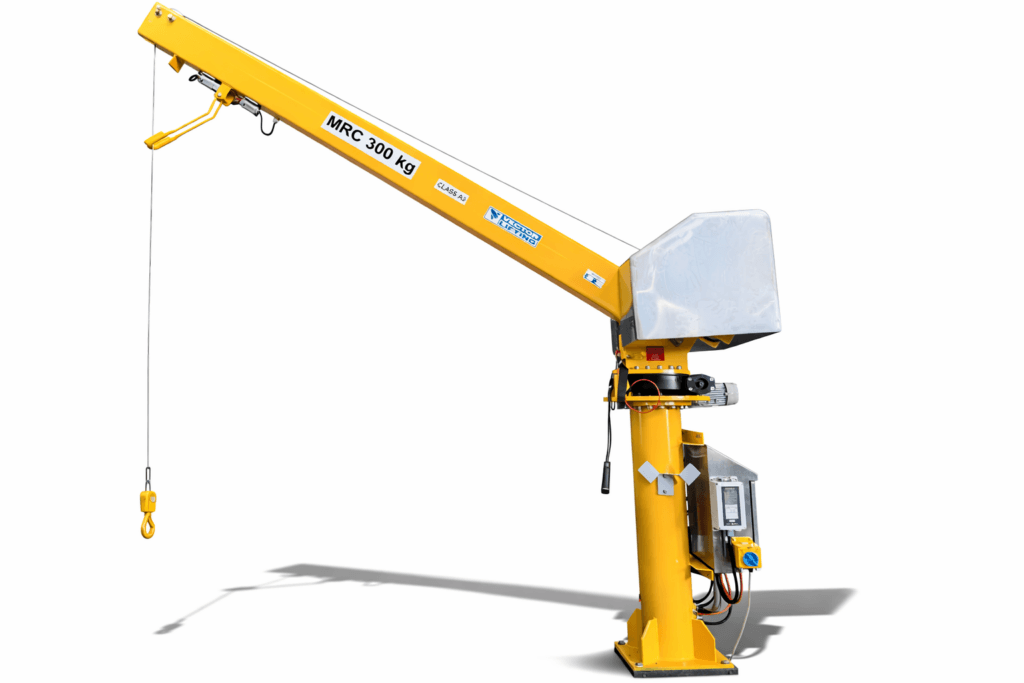

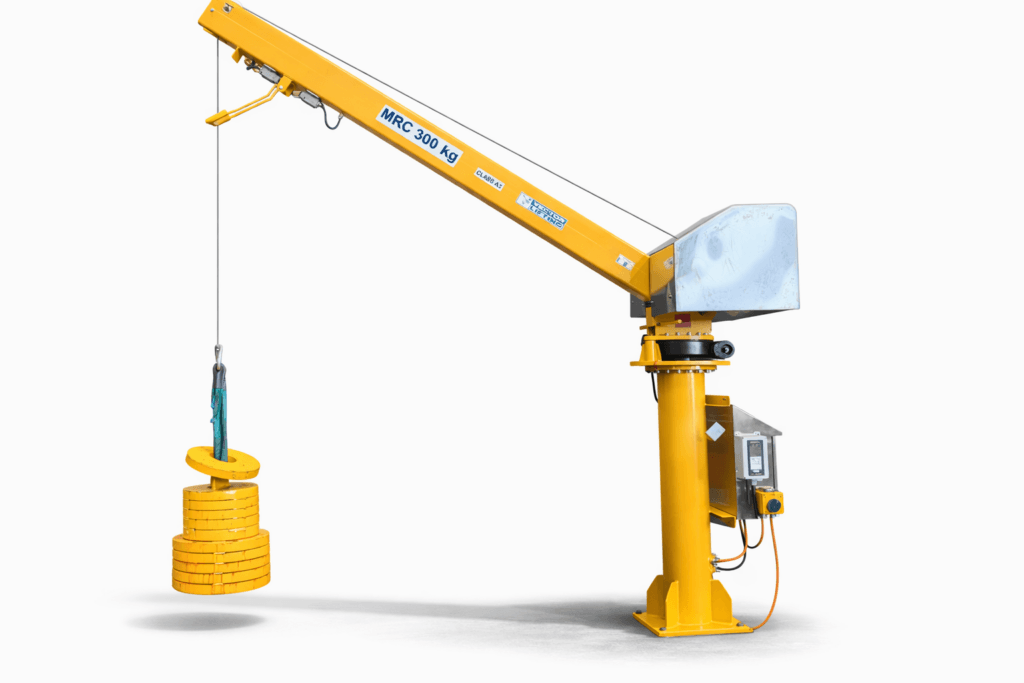

Vector Lifting Davit Cranes

All Davit Cranes are available in a range of capacities and outreach, each offered with customisable features to suit site requirements. Cranes are rotated by either manual slew handle or hand operated mechanical drive for larger capacities, and are capable of infinite 360* slew. Cranes are also available with a jib-mounted winch or with single lifting eye.

Personnel Davit Cranes are also offered by Vector Lifting for confined space entry or personnel recovery. These cranes are custom designed to suit application and end user requirements.

Features

  • Personnel Rating
  • Electric Winch
  • Fixed Single Lifting Eye
  • Electric Hoist
  • Mechanical Slew Drive
  • Double Winch Arrangement
  • Client Specified Surface Treatment
  • Custom Base or Mounting Connection

Options Available

  • Capacities up to 1000kg
  • Customisable Reach
  • Manual Wire Rope Winch
  • Manual 360° Slew
  • Square Base Mounting Plate
  • Slew Lock
  • Hot Dipped Galvanized or Outdoor Paint Treatment

Reid Porta Davit

With a safe lifting capacity of up to 500kg, made of lightweight aluminium and weighing just 24kg (fully assembled), the PORTA-DAVIT system is literally a one person ‘pick up and go’ lifting solution. Manufactured using REID Lifting’s innovative design, the PORTA-DAVIT bagged system can be easily transported by hand to any site that a single person can access.

The PORTA-DAVIT is available in several variations, including standard strop and winched versions, extended radius (e.g. WLL 350kg at 1500mm radius) and complete with a portable socket base (the PORTA-BASE), removing the need for a fixed socket installation.

Product Overview Operation and Maintenance

Features

  • GOODS WLL: Up to 500kg
  • PERSONNEL WLL: Up to 120kg
  • 1 PERSON FALL ARREST: EN795:1997 certified as part of an EN363 compliant system
  • ATEX: Suitable for use in ATEX Zone 2 explosive atmospheres
  • LIGHTWEIGHT & PORTABLE: Standard unit just 24kg fully assembled – Simple assembly within manual handling guidelines, 2-piece design with no tools needed – Easy to store and transport in heavy duty bag
  • RADIUS ADJUSTMENT: 800-1200mm as standard
  • EASE OF ROTATION: 360* rotation under full load with fingertip control
  • CORROSION RESISTANT: Clean, anodized finish
  • UNIVERSAL KINGPIN: Mates with all 65mm REID sockets (or sleeves for existing sockets) – includes REID’s unique portable socket, the PORTA-BASE. Also suitable for use with socket extensions.

Reid Porta Davit Quantum

The unique, ultra-light and rapidly deployable system is the latest innovation to come from REID Lifting. With a WLL 600kg and weighting from just 18.5kg with an integrated carry-handle, the PORTA-DAVIT QUANTUM is easily transported, and suitable for a range of applications.

Product Overview Assembly & Operation

Features

  • GOODS WLL:
    QUANTUM 1: Up to 600kg at 1200mm radius
    QUANTUM 2: Up to 500kg at 1500mm radius
  • PERSONNEL WLL: Up to 150kg at all configurations
  • 1 PERSON FALL ARREST: EN795:2012 certified – as part of an EN363 compliant system
  • ATEX: Suitable for use in ATEX Zone 2 explosive atmospheres
  • LIGHTWEIGHT & PORTABLE: Manual handling compliant – fully assembled weight from just 18.5kg – Integrated carry handle – Bagged for easy transportation and storage
  • RAPID ASSEMBLY: No tools needed, assembles on just 1 pin (2 for winched)
  • RADIUS ADJUSTMENT: 900mm-1200mm or 1200mm – 1500mm as standard
  • EASE OF ROTATION: 360* rotation under full load with fingertip control
  • CORROSION RESISTANT: Clean anodized finish to increase wear resistance
  • UNIVERSAL KINGPIN: Mates with all 65mm REID sockets (or sleeves for existing sockets). Also suitable for use with socket extensions

T-Davit

An extensive range of davits offering up to WLL 500kkg with 360* rotation under finger tip control for those difficult locations, giving a wide range of standard height and radius options and available customizations.

Particularly suited to situations with environment constraints (headroom, handrails, etc.) with a wide range of configurations available. Designed to comply with manual handling regulations and to avoid assembling the davit at height.

Product Overview Assembly & Operation

Features

  • GOODS WLL: Up to 500kg
  • PERSONNEL WLL: Configurations available up to 150kg
  • 1 PERSON FALL ARREST: EN795:2012 certified, as part of an EN363 compliant system
  • ATEX: Suitable for use in ATEX Zone 2 explosive atmospheres
  • LIGHTWEIGHT & PORTABLE: – Manual handling compliant – Reduced maintenance costs – Bagged for easy transportation and storage
  • RAPID ASSEMBLY: Assembly & operation by 1 person, no tools required – just 2 main components
  • RADIUS ADJUSTMENT: Operational radius up to 3000mm – subject to WLL reduction (1900mm maximum for EN795
  • EASE Of ROTATION: 360* rotation under full load with fingertip control
  • CORROSION RESISTANT: Clean anodized finish to increase wear resistance
  • UNIVERSAL KINGPIN: Mates with all 65mm REID sockets (or sleeves for existing sockets), also suitable for use with socket extensions
  • DUAL POSITION: 2 Lifting positions as standard (A &B)
  • TWIN SHACKLES: for index lifting and/or attachments for winching
